Hikvision

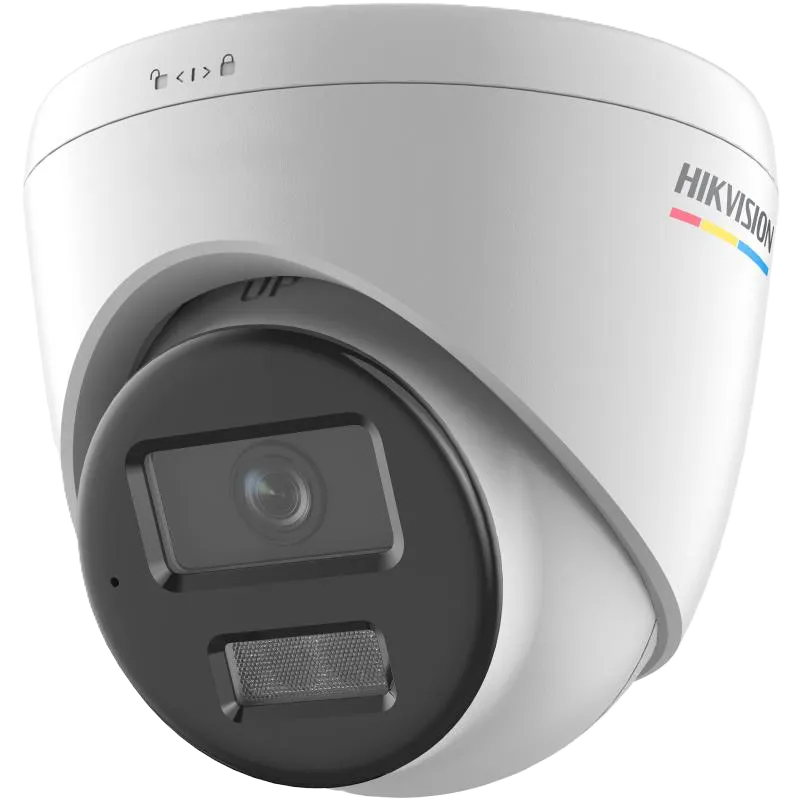

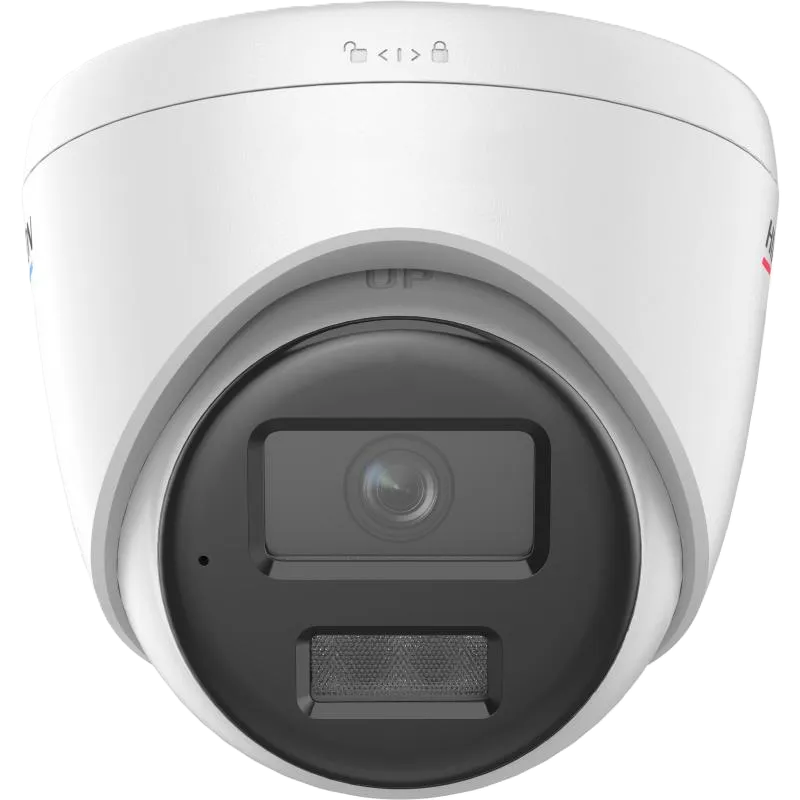

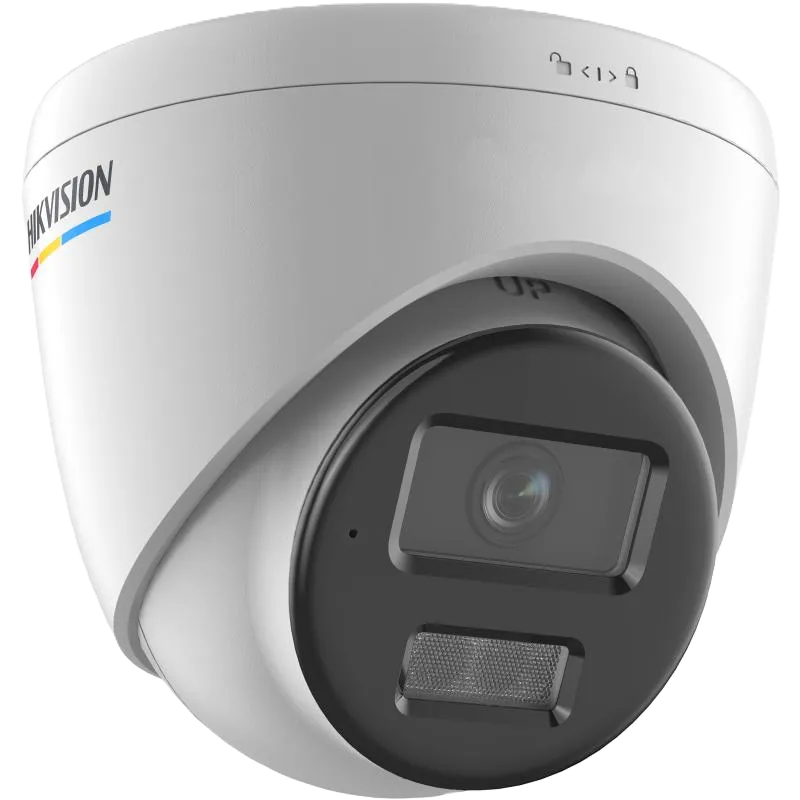

2 MP ColorVu with Smart Hybrid Light Fixed Turret Network Camera
Model:
DS-2CD1327G2H-LIUF/S(L)(RB)
Key Features
- High quality imaging with 2 MP resolution
- 24/7 colorful imaging
- Support Person and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range cover
- Provide real-time security via built-in two-way audio and strobe light alarm
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot)
- Water and dust resistant (IP67)
Genuine Products
Full Warranty
Professional Installation
24/7 Support
Technical Specifications
Detailed technical information for DS-2CD1327G2H-LIUF/S(L)(RB)
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Max. Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm: H 106°, V 56°, D 129°; 4 mm: H 88°, V 47°, D 103° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| DORI | 2.8 mm: D 44 m, O 17 m, R 8 m, I 4 m; 4 mm: D 53 m, O 21 m, R 10 m, I 5 m |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360); 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Video Compression | Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32–160 Kbps (MP2L2)/16–64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP, UPnP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK |
| Security | Password protection, complicated password, watermark, HTTP authentication, WSSE, audit log, MAC address authentication |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | IE 10, IE 11 (plugin required); Chrome 57+, Firefox 52+, Edge 89+ (local service) |
| Image | |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | Digital WDR |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10/100M self-adaptive |
| On-Board Storage | microSD/microSDHC/microSDXC up to 512 GB |
| Built-in Microphone | Yes, 1 built-in microphone |
| Built-in Speaker | 1 built-in speaker, max. 2 W, SPL 101 dB @ 10 cm |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (person/vehicle classification), video tampering, exception |
| Linkage | Upload to memory card, upload to FTP, trigger recording, notify surveillance center, send email, trigger capture |
| General | |
| Power | 12 VDC ±25%, 0.50 A, max. 6.0 W; PoE IEEE 802.3af Class 3, max. 7.2 W |
| Material | Metal & Plastic |
| Dimension | Ø110 mm × 93 mm (Ø4.33" × 3.66") |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55") |
| Weight | Approx. 400 g (0.9 lb.) |
| With Package Weight | Approx. 646 g (1.4 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity ≤95% non-condensing |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity ≤95% non-condensing |
| Language | English, Ukrainian |
| General Function | Heartbeat, mirror, flash log, password reset via email, password protection, anti-banding |
| Flashing Light | /SRB model: Red and Blue Light; /SL model: White Light |
| Approval | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
| Safety | UL: UL 62368-1; CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017; BIS: IS 13252 (Part 1):2010/IEC 60950-1:2005 |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013) |
| Typical Application | No specific anti-corrosion protection required |
| Available Models | DS-2CD1327G2H-LIUF/SL (2.8 mm, 4 mm); DS-2CD1327G2H-LIUF/SRB (2.8 mm, 4 mm) |
| Accessories | |
| Optional Mounts | DS-1272ZJ-110B Wall Mount; DS-1272ZJ-110 Wall Mount; DS-1271ZJ-110 Pendant Mount; DS-1275ZJ-SUS Vertical Pole Mount; DS-1276ZJ-SUS Corner Mount; DS-1280ZJ-S Junction Box; DS-1281ZJ-S Inclined Ceiling Mount; DS-2280ZJ-WA110 Junction Box; DS-2210ZJ-WA-110 Pendant Mount; DS-2200ZJ-WA-110 Wall Mount; DS-2200ZJ-WAJ-110 Wall Mount |
