Hikvision

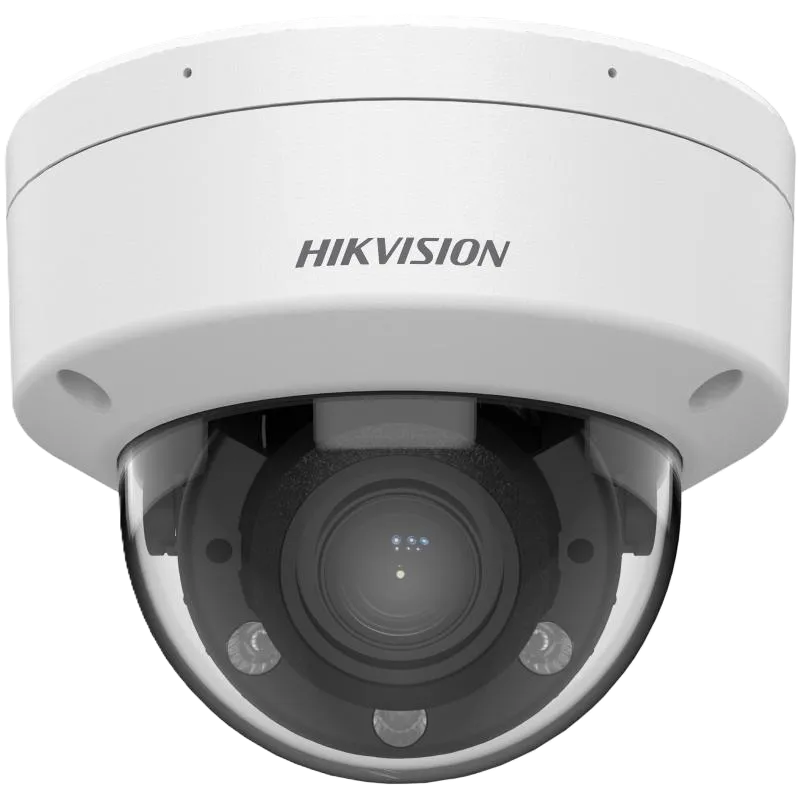

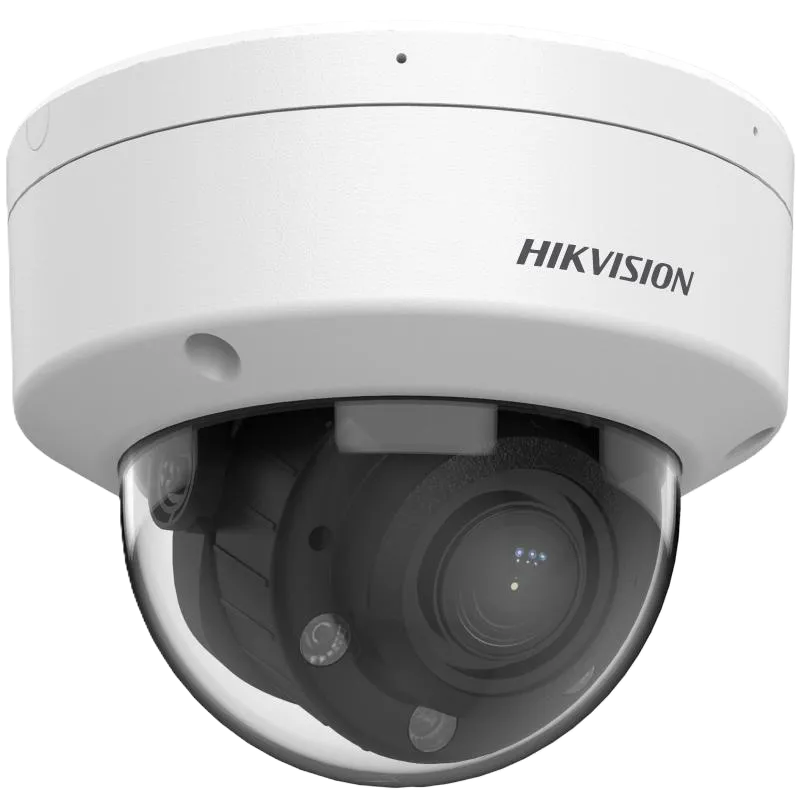

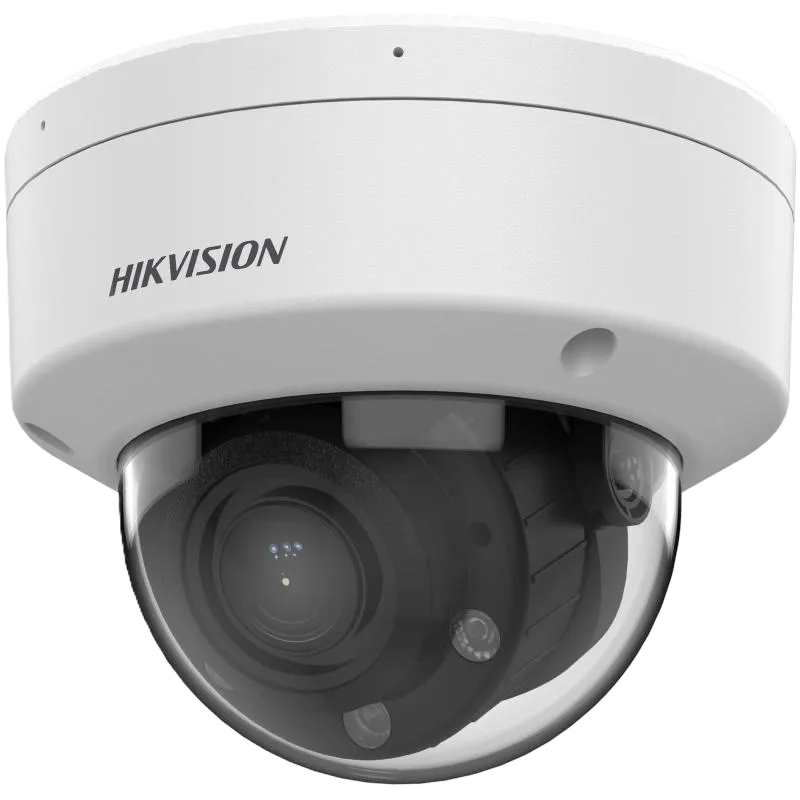

4 MP Dual Light MD 2.0 Varifocal Dome Network Camera
Model:
DS-2CD1743G2-LIZ(S)U
Key Features
- High quality imaging with 4 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Clear imaging against strong back light due to 120 dB true WDR technology
- Support on-board storage up to 512 GB (SD card slot)
- Efficient H.265+ compression technology
- Built-in microphone for real-time audio security
- 2.8 to 12 mm motorized varifocal lens for easy installation and monitoring
- Water and dust resistant (IP67), vandal proof (IK08)
Genuine Products
Full Warranty
Professional Installation
24/7 Support
Technical Specifications
Detailed technical information for DS-2CD1743G2-LIZ(S)U
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Max. Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 70°, rotate: 0° to 355° |
| Lens | |
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8–12 mm, H 96.7°–29.7°, V 51.7°–16.7°, D 114.3°–34° |
| Lens Mount | Ø14 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | D: 64.0–198.0 m, O: 25.4–78.6 m, R: 12.8–39.6 m, I: 6.4–19.8 m |
| Illuminator | |
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Video | |
| Main Stream | 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720); 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Audio | |
| Audio Type | Mono sound |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32–160 Kbps (MP2L2)/16–64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, user |
| Security | Password protection, complicated password, watermark, HTTP authentication, WSSE, audit log, MAC address authentication |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | IE 10, IE 11 (plugin required); Chrome 57+, Firefox 52+, Edge 89+ (local service) |
| Image | |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10/100M self-adaptive |
| On-Board Storage | microSD/microSDHC/microSDXC up to 512 GB |
| Built-in Microphone | Yes, 1 built-in microphone |
| Audio | -S: 1 input (line in), 1 output (line out), non-equilibrium |
| Alarm | -S: 1 input, 1 output (max. 12 VDC, 30 mA) |
| Reset Key | Yes |
| Event | |
| Basic Event | Motion detection (human/vehicle classification), video tampering, exception |
| Linkage | Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, (-S model) trigger alarm output |
| General | |
| Power | 12 VDC ±25%, 0.8 A, max. 9.6 W; PoE IEEE 802.3af Class 3, max. 12 W |
| Material | Base: metal, cover: plastic |
| Dimension | Ø121.5 mm × 97.6 mm (Ø4.78" × 3.84") |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.90" × 5.90" × 5.55") |
| Weight | Approx. 540 g (1.2 lb.) |
| With Package Weight | Approx. 740 g (1.6 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity ≤95% non-condensing |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity ≤95% non-condensing |
| Language | English, Ukrainian |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| Approval | |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32:2015, IC: ICES-003: Issue 7 |
| Safety | UL: UL 62368-1; CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017; BIS: IS 13252 (Part 1):2010/IEC 60950-1:2005 |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013), IK08 (IEC 62262:2002) |
| Typical Application | No specific anti-corrosion protection required |
| Available Models | DS-2CD1743G2-LIZU (2.8–12 mm); DS-2CD1743G2-LIZSU (2.8–12 mm) |
| Accessories | |
| Optional Mounts | DS-1272ZJ-120 Wall Mount; DS-1272ZJ-120B Wall Mount; DS-1271ZJ-120 Pendant Mount; DS-1275ZJ-SUS Vertical Pole Mount; DS-1276ZJ-SUS Corner Mount; DS-1280ZJ-DM46 Junction Box; DS-2280ZJ-WA120 Junction Box; DS-2210ZJ-WA-120 Pendant Mount; DS-2200ZJ-WA-120 Wall Mount; DS-2200ZJ-WAJ-120 Wall Mount |
